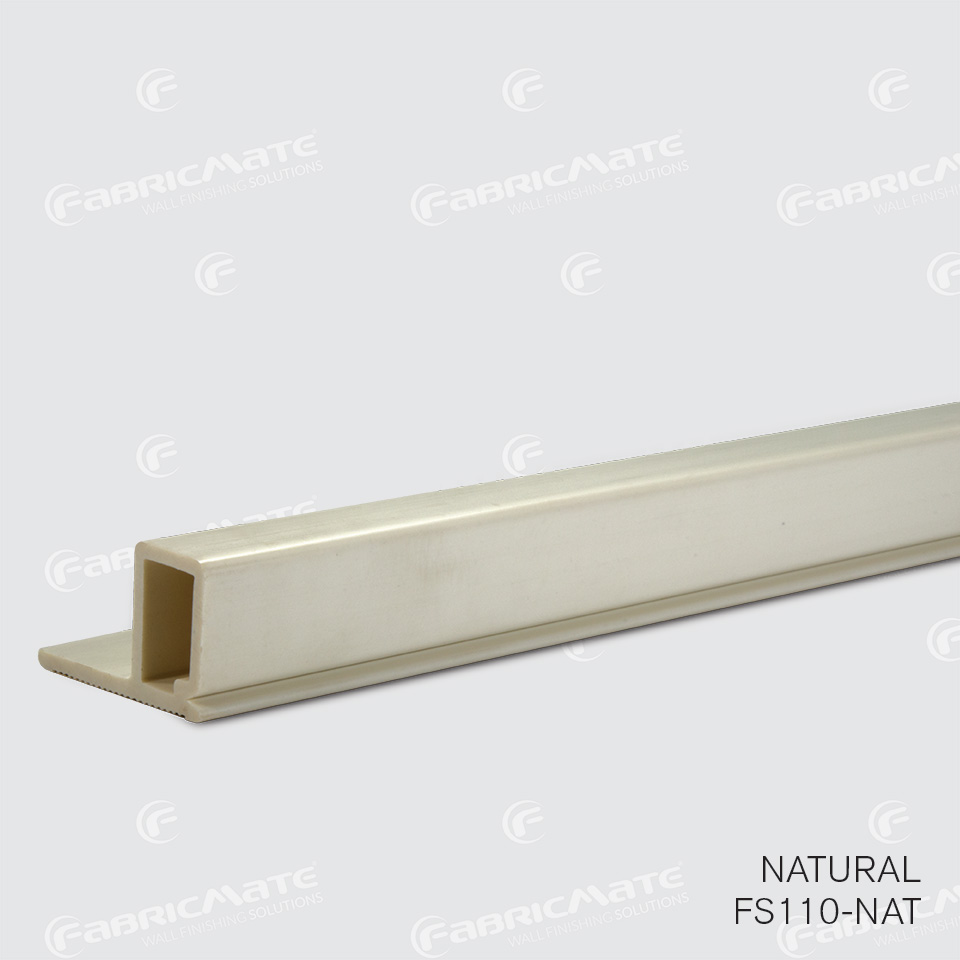

- 1/2 in. (Actual Height 5/8 in.) Square Side Load - Classic-Line® Fabric Mounting Frame FS110 - Sold by the 5 Ft Stick (+/- 1/2")
1/2 in. (Actual Height 5/8 in.) Square Side Load - Classic-Line® Fabric Mounting Frame FS110 - Sold by the 5 Ft Stick (+/- 1/2")
3 /shop/fs110-nat-1-2-in-actual-height-5-8-in-square-side-load-classic-line-r-fabric-mounting-frame-fs110-sold-by-the-5-ft-stick-1-2-4015Our New & Improved FS110 Classic-Line® 1/2" Frame (actual height 5/8 in.) has been updated with an increased height to better accommodate 1/2" substrates and allow for the proper air gap, as well as new Glue Grooves for better adhesion when using the adhesive and staple method.
Classic 1/2 inch profile (actual height 5/8 in.) is economical and ideal for education and office applications
Square Side-Load profile provides a wrapped fabric panel appearance
Easy to install with sure grip jaws to hold fabric tight
Can be used as a Perimeter piece only
Ridged bottom for better surface adhesion
Available in Natural color only - frame is not visible when fabric is installed
At least 8" of clearance required on side of frame to roll fabric in Sold and shipped in 5 foot segments (length may vary +/- 1/2")
Made of durable uPVC
Product Samples available. Scroll down for link.
OVERVIEW: FS110 SQUARE SIDE-LOAD
Our NEW FS110 - Square Side-Load profile is one of our more innovative Fabric Mounting Frames. The square side-load profile produces clean, crisp fabric covered edges that have the look of a wrapped fabric panel. It can be used as a perimeter piece or combined with our FS100 or FS230 frame to create intermediate seam joints. The new slightly taller design is fully compatible with any 1/2" (Classic-Line®) substrates. Bottom grooves give better adhesion to drywall and other surfaces when using the staples + adhesive mounting method. The side-loading feature requires 8" of clearance between the frame side and adjacent walls, ceilings, and moldings in order to roll the fabric into the frame. This profile is available in Natural color only as virtually the entire frame will be covered by the fabric and not visible. We've made some exciting changes and updates but unfortunately this new Frame is NOT compatible with previous versions of our Classic-Line® 1/2 inch frame. This Frame is perfect for use with our Fabric Wall Finishing System. Combined with our ReCore® Backing and Fabric, this Frame can be used to create anything from full-wall photographic murals to smaller acoustic or bulletin-board panels as well as wainscoting and other types of Wall Protection. |
BENEFITS
EASILY CUSTOMIZABLE Our Frame is flexible and easy to work with, making customization a breeze. Our Frame also works great when you run into walls that are not perfectly symmetrical or have dents, damage, and wear and tear. Since our frame is flexible, you can follow the lines to the tee, even the crooked ones. Take control of your walls. | FLEXIBLE With our Flex-Frame® you can create rounded corners, wavy layouts, and full on rounded/circular designs. Great for baffles, styled installations, and ceilings. | TIRED OF TRADITIONAL Bored with the regular old rectangle and square panels? With our Flex-Frame® you can create fully customized layouts including creating your own custom curved or circular design. | BUILT SMART We now offer Fabricmate Frame Kits to make your installation even easier! We've created pre-cut Kits for Switches & Outlets, Inside Corners, Outside Corners, Seams, and more so you don't have to waste extra time figuring out angles, sizes, and other technical details. |
DOCUMENT DOWNLOADS

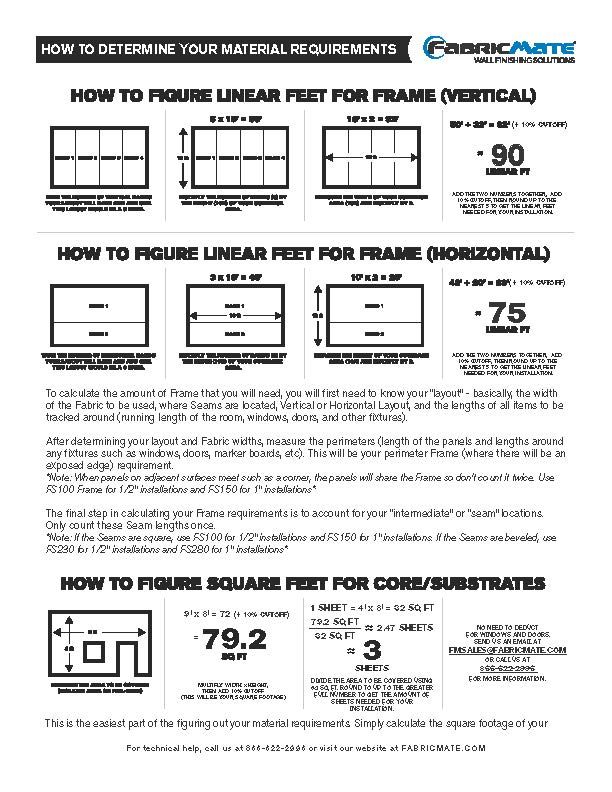

DATA SHEET Download the FSM105 Data Sheet including information on the Profile Technical Details, Features, Specifications, and more. | MATERIALS & TIME Download this sheet to help you discover the approximate amount of materials and time needed for your installation. | PRODUCT CATALOG Download the Fabricmate® 2020 Product Catalog to get more information on our system as well as our product offerings. | GENERAL BROCHURE Download the Fabricmate® General Brochure with a breakdown of how the system works, installation options, and Panel/Full-Wall Features. | INSTALLATION GUIDE Download the Fabricmate® Installation Guide for a comprehensive explanation of the system, tips & tricks, how to install, and additional system options. | QUICK START GUIDE Download the Fabricmate® Quick Start Guide for basic instructions on how to quickly get started with your installation. |
DOWNLOAD | DOWNLOAD | DOWNLOAD | DOWNLOAD | DOWNLOAD | DOWNLOAD |
PRODUCT VIDEO LINKS
FRAME DETAILS
HEIGHT
1/2"
EDGE PROFILE
SQUARE
EDGE USAGE
YES
SEAM USAGE
NO
LOAD DIRECTION
SIDE-LOAD
CURVABLE
YES
ADDITIONAL THICKNESSES
1/4" (SLIM-LINE®)
1/2" (CLASSIC-LINE®)
1" (FULL-LINE®)
2"+ (MAX-LINE®)
FRAME KITS: INSTALLATION JUST GOT EASIER
Our Kits make installation even easier! We have pre-cut Kits for the most common installation scenarios. These Kits make on-site installations even quicker and easier. No need to figure out any angles, sizing, or otherwise. These Kits are ready to go and make it incredibly easy to create seams or go around windows, doors, outlets, switches, create inside & outside corners, and more!
Corner Kits
Seam Kits
Window/Door Kits
Window/Door Kits w/Seam
Cross Seam Kit
Outlet/Switch Kits
Inside Wall Corner Kits
Inside Wall Corner Seam Kits
Outside Wall Corner Kit
Outside Wall Corner Kit w/SeamPhoto shows Corner Kit (5 & 6 Pieces)
GALLERY
INNOVATIVE & VERSATILE
With a variety of sizes, shapes, and colors available, the possibilities are endless.
FRAME outlines and frames the shape of the panel or wall, holding the fabric in place and protecting the edges with a high-impact polymer frame.
BACKING fills the frame and covers the wall, absorbing reverberated sound, providing impact-resistance, thermal insulation, and a pinnable bulletin-board like surface that's perfect for tacking up photos, documents, and more.
FABRIC is stretched over the backing and held taut by the frame allowing the panel surface to spring back when struck, effectively mitigating visible damage.
PRODUCT SPECIFICATIONS Description Durable PVC Track for use in Fabric Wall Finishing * Drywall Screws * Staples & Adhesive (Liquid Nails or PL200 Recommended) * Fabricmate® Chanfer Cutters * 180 Tooth 10" Plastic Weight Chop Saw |
TERMS & CONDITIONS
RESERVATIONS
Reservations are highly encouraged to ensure proper inventory is in stock and available, reservations will only be held for 30 days, unless other prior written arrangements are made. Reservations should be faxed, e-mailed or mailed in writing including product type, quantities and the dates materials are to be delivered.
ORDER FULFILLMENT/SHIPPING
Fabricmate® Systems, Inc. makes every attempt to fill all orders in a timely manner, usually within 1-5 business days. However, sometimes due to circumstances beyond our control, or during high ordering periods an order may be delayed or back ordered. If a delay or back order occurs, you will receive notification via e-mail or phone. Back orders in most cases will ship no later than 6-8 weeks after receiving customer purchase orders. Please note that on all orders shipped to destinations outside of the United States the receiver is responsible for any taxes, duties and fees incurred.
PLEASE INSPECT THE SHIPMENT IMMEDIATELY
Fabricmate® Systems, Inc. tries to ensure that your shipment is delivered to the highest standards of quality, however any damage or loss incurred in transit is the responsibility of the carrier. In the event that an error or damage occurs, the following procedure must be followed:
IN CASE OF DAMAGE OR LOSS:
For UPS and Fed Ex shipments (and all other small package deliveries)
- Notify Fabricmate® Systems within 5 business days of receipt.
- Retain the merchandise AND packing material for inspection by the carrier. Take photos of damage if possible.
For Common Carrier (truck) shipments
- Notify Fabricmate® Systems within 5 business days of receipt.
- Retain the merchandise AND packing material for inspection by the carrier. Take photos of damage if possible.
- For common carrier claims, the carrier requires the recipient of the merchandise to file claims and receive reimbursement.
RETURNED GOODS
Do not return any merchandise for any reason without first calling our Customer Service Department. All unauthorized returns may be refused at our dock. Stock items ordered in error may be returned (freight prepaid) for credit within 30 days less a 20% restocking charge, however, cut material is subject to a 40% restocking charge. Returns over 30 days from invoice date will not be accepted. Please have your shipping order number and date of delivery on hand when calling.
Fabricmate's By the Square Foot (BTSF) system can be returned for a refund (minus a 20% restocking fee) if the entire system is returned to us within 30 days of purchase in new, unused and uninstalled condition. Partial returns of individual components and components that have been used, altered, or previously installed will not be accepted. Customer is responsible for any return shipping charges.
OVERVIEW: FS110 SQUARE SIDE-LOAD
Our NEW FS110 - Square Side-Load profile is one of our more innovative Fabric Mounting Frames. The square side-load profile produces clean, crisp fabric covered edges that have the look of a wrapped fabric panel. It can be used as a perimeter piece or combined with our FS100 or FS230 frame to create intermediate seam joints. The new slightly taller design is fully compatible with any 1/2" (Classic-Line®) substrates. Bottom grooves give better adhesion to drywall and other surfaces when using the staples + adhesive mounting method. The side-loading feature requires 8" of clearance between the frame side and adjacent walls, ceilings, and moldings in order to roll the fabric into the frame. This profile is available in Natural color only as virtually the entire frame will be covered by the fabric and not visible. We've made some exciting changes and updates but unfortunately this new Frame is NOT compatible with previous versions of our Classic-Line® 1/2 inch frame. This Frame is perfect for use with our Fabric Wall Finishing System. Combined with our ReCore® Backing and Fabric, this Frame can be used to create anything from full-wall photographic murals to smaller acoustic or bulletin-board panels as well as wainscoting and other types of Wall Protection. |
BENEFITS
EASILY CUSTOMIZABLE Our Frame is flexible and easy to work with, making customization a breeze. Our Frame also works great when you run into walls that are not perfectly symmetrical or have dents, damage, and wear and tear. Since our frame is flexible, you can follow the lines to the tee, even the crooked ones. Take control of your walls. | FLEXIBLE With our Flex-Frame® you can create rounded corners, wavy layouts, and full on rounded/circular designs. Great for baffles, styled installations, and ceilings. | TIRED OF TRADITIONAL Bored with the regular old rectangle and square panels? With our Flex-Frame® you can create fully customized layouts including creating your own custom curved or circular design. | BUILT SMART We now offer Fabricmate Frame Kits to make your installation even easier! We've created pre-cut Kits for Switches & Outlets, Inside Corners, Outside Corners, Seams, and more so you don't have to waste extra time figuring out angles, sizes, and other technical details. |
DOCUMENT DOWNLOADS
DATA SHEET Download the FSM105 Data Sheet including information on the Profile Technical Details, Features, Specifications, and more. | MATERIALS & TIME Download this sheet to help you discover the approximate amount of materials and time needed for your installation. | PRODUCT CATALOG Download the Fabricmate® 2020 Product Catalog to get more information on our system as well as our product offerings. | GENERAL BROCHURE Download the Fabricmate® General Brochure with a breakdown of how the system works, installation options, and Panel/Full-Wall Features. | INSTALLATION GUIDE Download the Fabricmate® Installation Guide for a comprehensive explanation of the system, tips & tricks, how to install, and additional system options. | QUICK START GUIDE Download the Fabricmate® Quick Start Guide for basic instructions on how to quickly get started with your installation. |
DOWNLOAD | DOWNLOAD | DOWNLOAD | DOWNLOAD | DOWNLOAD | DOWNLOAD |
PRODUCT VIDEO LINKS
FRAME DETAILS
HEIGHT
1/2"
EDGE PROFILE
SQUARE
EDGE USAGE
YES
SEAM USAGE
NO
LOAD DIRECTION
SIDE-LOAD
CURVABLE
YES
ADDITIONAL THICKNESSES
1/4" (SLIM-LINE®)
1/2" (CLASSIC-LINE®)
1" (FULL-LINE®)
2"+ (MAX-LINE®)
FRAME KITS: INSTALLATION JUST GOT EASIER
Our Kits make installation even easier! We have pre-cut Kits for the most common installation scenarios. These Kits make on-site installations even quicker and easier. No need to figure out any angles, sizing, or otherwise. These Kits are ready to go and make it incredibly easy to create seams or go around windows, doors, outlets, switches, create inside & outside corners, and more!
Corner Kits
Seam Kits
Window/Door Kits
Window/Door Kits w/Seam
Cross Seam Kit
Outlet/Switch Kits
Inside Wall Corner Kits
Inside Wall Corner Seam Kits
Outside Wall Corner Kit
Outside Wall Corner Kit w/SeamPhoto shows Corner Kit (5 & 6 Pieces)
GALLERY
INNOVATIVE & VERSATILE
With a variety of sizes, shapes, and colors available, the possibilities are endless.
FRAME outlines and frames the shape of the panel or wall, holding the fabric in place and protecting the edges with a high-impact polymer frame.
BACKING fills the frame and covers the wall, absorbing reverberated sound, providing impact-resistance, thermal insulation, and a pinnable bulletin-board like surface that's perfect for tacking up photos, documents, and more.
FABRIC is stretched over the backing and held taut by the frame allowing the panel surface to spring back when struck, effectively mitigating visible damage.
